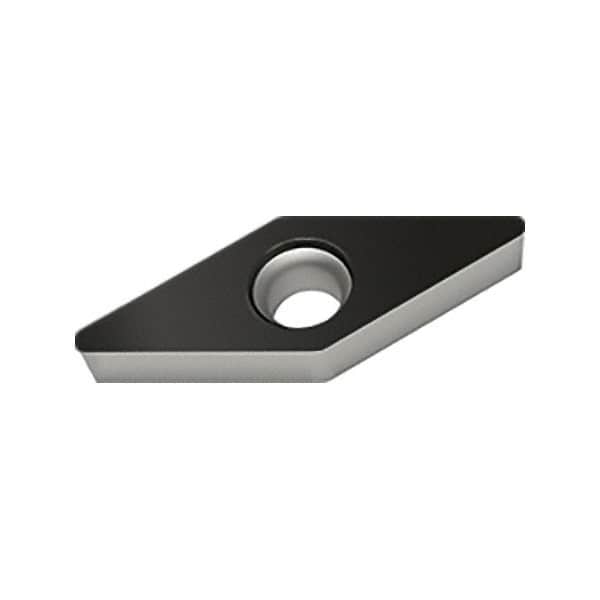

Walter - VCMW RK6 Grade WKK10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 35° Rhombic, 9.53mm Inscr Circle, 4.76mm Thick, 0.4mm Corner Radius
Item #: 47335583
Brand: Walter
Model #: 6651598
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VCMW |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK6 |
| Insert Length (Decimal Inch) | 0.6540 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.6063 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VCMW160404-RK6 WKK10S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6651598 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VCMW-RK6 |
| Maximum Depth of Cut (mm) | 16.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Rhombic 35 |
