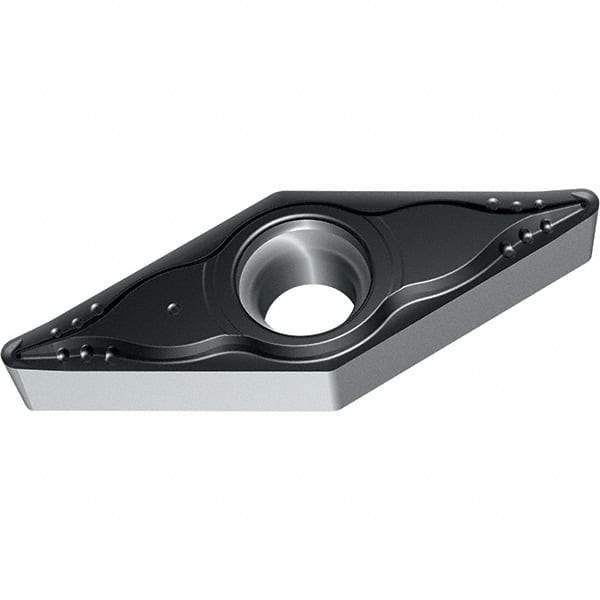

Walter - VBMT MK4 Grade WKK20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 35° Rhombic, 9.53mm Inscr Circle, 4.76mm Thick, 1.2mm Corner Radius
Item #: 47335443
Brand: Walter
Model #: 6498445
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.2 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WKK20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | MK4 |
| Insert Length (Decimal Inch) | 0.6540 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.6063 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VBMT160412-MK4 WKK20S |
| Relief Angle | 5 |
| Proprietary Coating Designation | WKK20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6498445 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VBMT-MK4 |
| Maximum Depth of Cut (mm) | 16.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Rhombic 35 |
