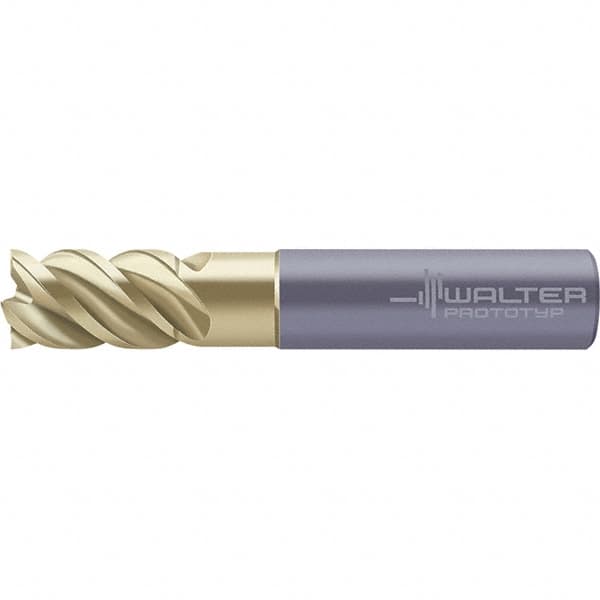

Walter-Prototyp - 6mm, 16mm LOC, 6mm Shank Diam, 57mm OAL, 4 Flute, Solid Carbide Square End Mill - AlTiN/ZrN Finish, 50° Helix, Right Hand Cut, Right Hand Flute, Series MC341-A-4-P
Item #: 47333901
Brand: Walter-Prototyp
Model #: 6911707
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest coatings. Zirconium nitride (ZrN) is similar to TiN, but has a higher oxidation temperature. It is used on nonferrous materials including aluminum, brass, copper and titanium.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2360 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 16.00 |
| Length of Cut (Decimal Inch) | 0.6000 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN/ZrN |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2440 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 50 |
| Manufacturer Grade | WK40TZ |
| Series/List | MC341-A-4-P |
