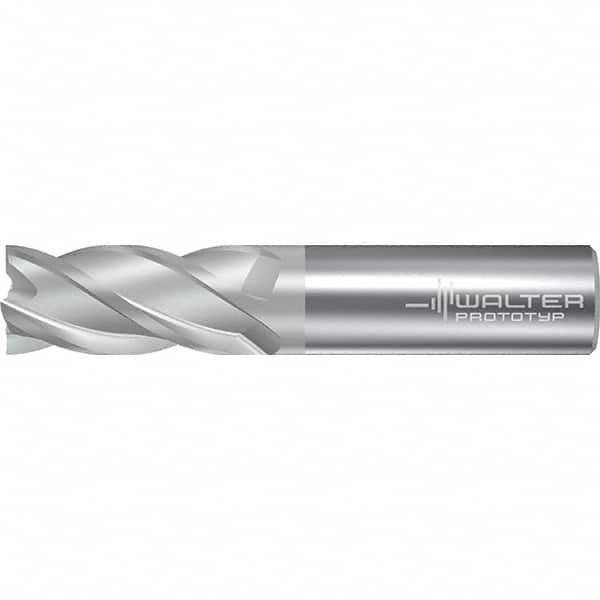

Walter-Prototyp - 19.05mm, 38mm LOC, 19.05mm Shank Diam, 101.6mm OAL, 4 Flute, Solid Carbide Square End Mill - TiAlN/TiAl Finish, 38° Helix, Right Hand Cut, Right Hand Flute, Series AH2034217
Item #: 47332994
Brand: Walter-Prototyp
Model #: 6519040
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiAl is a high performance coating with particularly low friction for the machining of stainless steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 38.00 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN/TiAl |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Manufacturer Grade | TAA |
| Series/List | AH2034217 |
