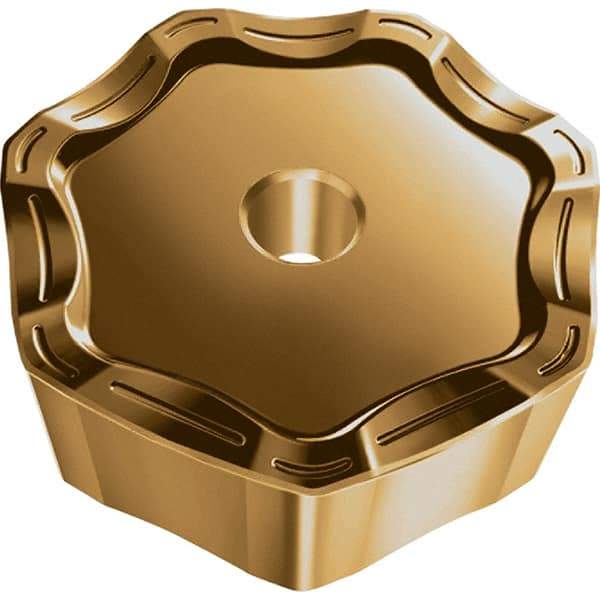

Walter - F57 Grade WKP25S Milling Insert - 5.8mm Thick, 14.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47328547
Brand: Walter
Model #: 6980908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Length (mm) | 7.00 |
| Length (Decimal Inch) | 0.2760 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (mm) | 5.80 |
| Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Manufacturers Catalog Number | XNMF070508-F57 WKP25S |
