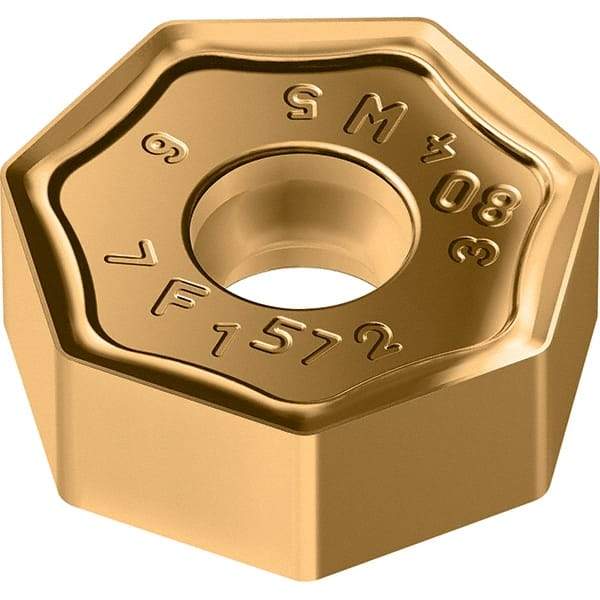

Walter - F57 Grade WKP25S Milling Insert - 5.88mm Thick, 19.05mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47328430
Brand: Walter
Model #: 6943638
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Width (mm) | 19.97 |
| Width (Decimal Inch) | 0.7860 |
| Length (mm) | 9.18 |
| Length (Decimal Inch) | 0.3610 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (mm) | 5.88 |
| Thickness (Decimal Inch) | 0.2310 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 9.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Manufacturers Catalog Number | XNMU0906ANN-F57 WKP25S |
