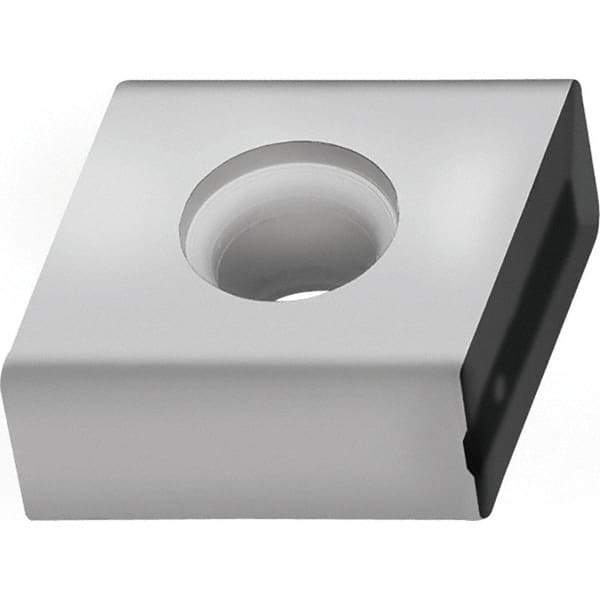

Walter - D57T Grade WSP45S Milling Insert - 6.5mm Thick, 13mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47327176
Brand: Walter
Model #: 7057753
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 13.00 |
| Width (Decimal Inch) | 0.5120 |
| Length (mm) | 12.00 |
| Length (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | D57T |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Manufacturers Catalog Number | CNMU120608-D57T WSP45S |
