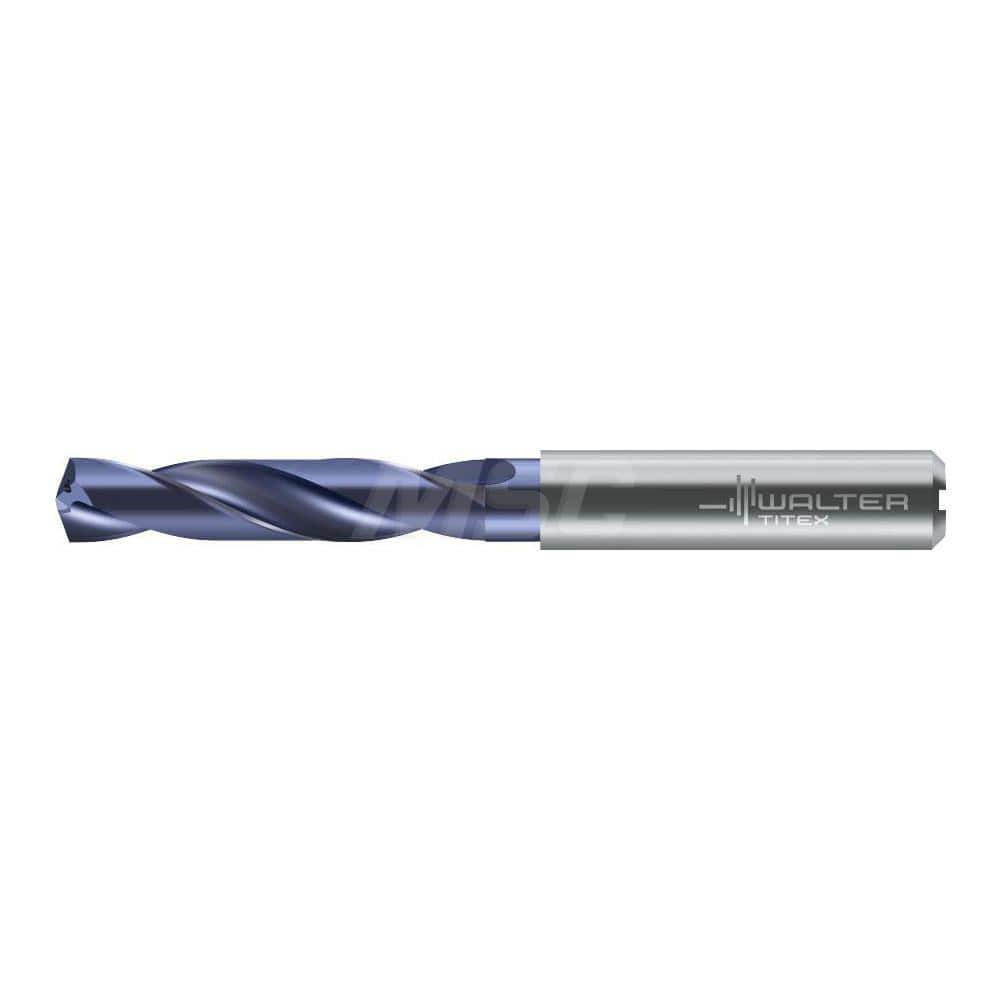

Screw Machine Length Drill Bit: 0.5787″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-03-A1
Item #: 47321179
Brand: Walter-Titex
Model #: 6968869
Product Specifications
| Drill Bit Size (mm) | 14.70 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Drill Bit Size (Decimal Inch) | 0.5787 |
| Drill Tip Finish/Coating | TiNAl |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5280 |
| Shank Diameter (mm) | 16.00 |
| Series | DC150-03-A1 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.7720 |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 2.68 |
| Drill Point Length (Decimal Inch) | 0.1050 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 2.5590 |
| Flute Length (mm) | 65.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
