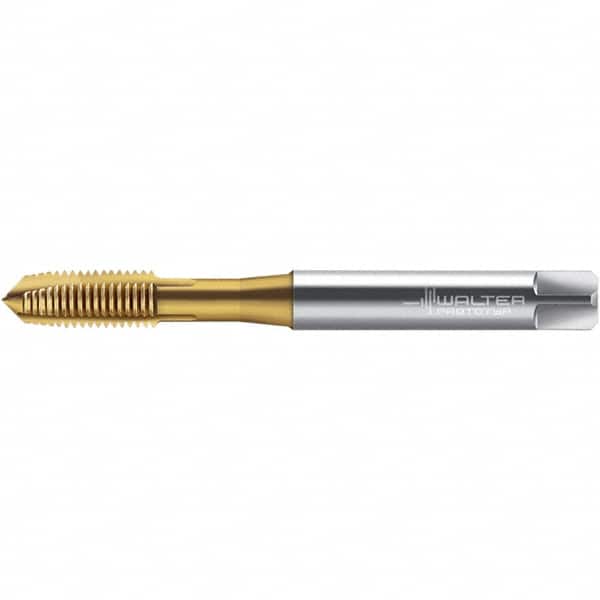

Walter-Prototyp - M3.5x0.60, 2 Flute, Oxide Finish, High Speed Steel Spiral Point Tap - Right Hand Thread, 57.25mm OAL, 9mm Thread Length, 3.5mm Shank Diam, Series TC216-M-C0
Item #: 47320486
Brand: Walter-Prototyp
Model #: 6743434
Exact Tooling IR#: 04
Features and Benefits
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3.5x0.60 |
| Number of Flutes | 2 |
| Finish/Coating | Oxide |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.2540 |
| Overall Length (mm) | 57.25 |
| Thread Length (Decimal Inch) | 0.3540 |
| Thread Length (mm) | 9.00 |
| Series/List | TC216-M-C0 |
| Shank Diameter (Decimal Inch) | 0.1380 |
| Shank Diameter (mm) | 3.50 |
| Square Length (Inch) | 0.2360 |
| Square Size (Decimal Inch) | 0.1060 |
| Square Size (mm) | 2.70 |
| Material Application2 | K, M, N, P |
