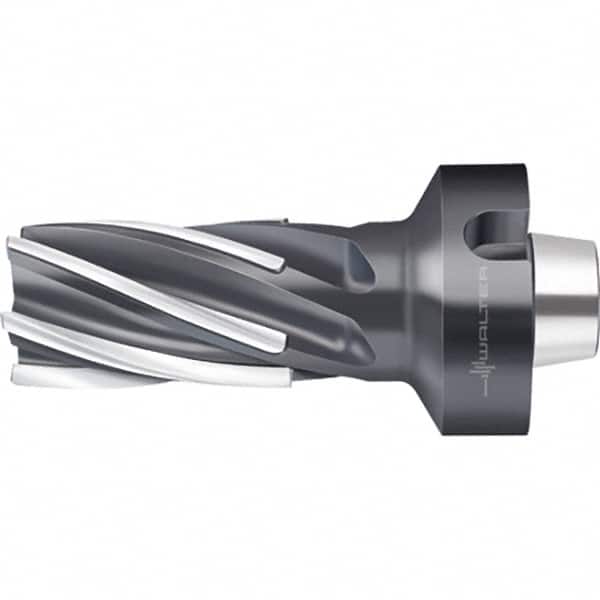

Walter - 63mm, 121mm LOC, 80mm Shank Diam, 168mm OAL, 6 Flute, High Speed Steel Square End Mill - Uncoated, 25° Helix, Right Hand Cut, Right Hand Flute, Series F1682-N
Item #: 47320106
Brand: Walter
Model #: 5001615
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 63.00 |
| Mill Diameter (Decimal Inch) | 2.4800 |
| Number of Flutes | 6 |
| Length of Cut (mm) | 121.00 |
| Length of Cut (Decimal Inch) | 5.0000 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (mm) | 80.00 |
| Shank Diameter (Decimal Inch) | 3.1500 |
| Overall Length (mm) | 168.00 |
| Overall Length (Decimal Inch) | 6.6140 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 25 |
| Manufacturer Grade | WKM |
| Series/List | F1682-N |
