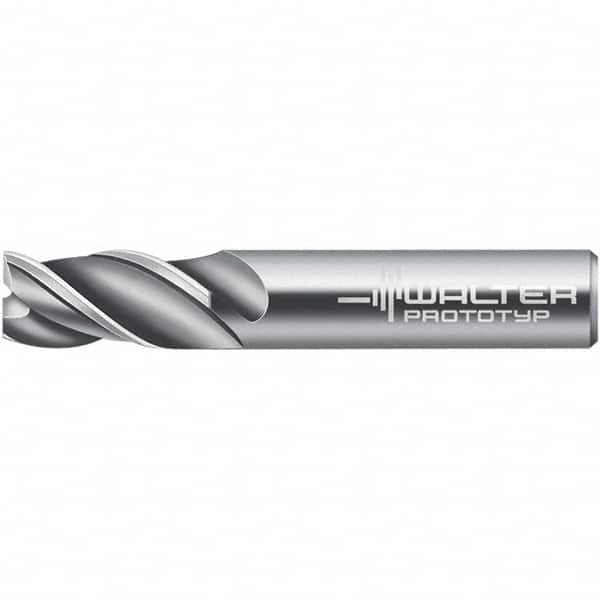

Walter-Prototyp - 6mm, 10mm LOC, 6mm Shank Diam, 57mm OAL, 3 Flute, Solid Carbide Square End Mill - TiCN Finish, 45° Helix, Right Hand Cut, Right Hand Flute, Series H3029146
Item #: 47319991
Brand: Walter-Prototyp
Model #: 5082301
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2360 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 10.00 |
| Length of Cut (Decimal Inch) | 0.4000 |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2440 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Manufacturer Grade | TICN |
| Series/List | H3029146 |
