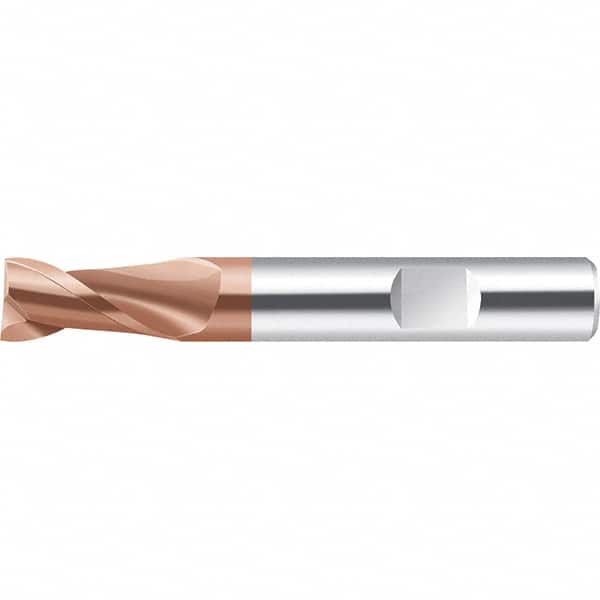

Walter-Prototyp - 12mm, 22mm LOC, 12mm Shank Diam, 83mm OAL, 2 Flute, Solid Carbide Square End Mill - AlCrN Finish, 35° Helix, Right Hand Cut, Right Hand Flute, Series MC232-W-2-B
Item #: 47316880
Brand: Walter-Prototyp
Model #: 7022538
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4720 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 22.00 |
| Length of Cut (Decimal Inch) | 0.9000 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Overall Length (mm) | 83.00 |
| Overall Length (Decimal Inch) | 3.2680 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Manufacturer Grade | WJ30ED |
| Series/List | MC232-W-2-B |
