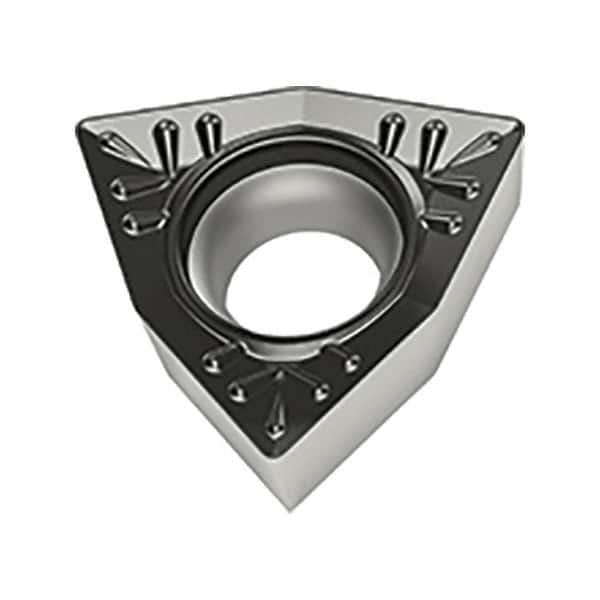

Walter - WCMT RK4 Grade WKK20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 80° Trigon, 6.35mm Inscr Circle, 2.38mm Thick, 0.4mm Corner Radius
Item #: 47314976
Brand: Walter
Model #: 6651164
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | WCMT |
| Length (mm) | 4.34 |
| Length (Decimal Inch) | 0.1710 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WKK20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK4 |
| Insert Length (Decimal Inch) | 0.1710 |
| OverallLength (mm) | 4.34 |
| Overall Length (Decimal Inch) | 0.1710 |
| Insert Length (mm) | 4.3437 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | WCMT040204-RK4 WKK20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6651164 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | WCMT-RK4 |
| Maximum Depth of Cut (mm) | 4.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.1710 |
| Cutting Width (mm) | 4.34 |
| Shape | Trigon 80 |
