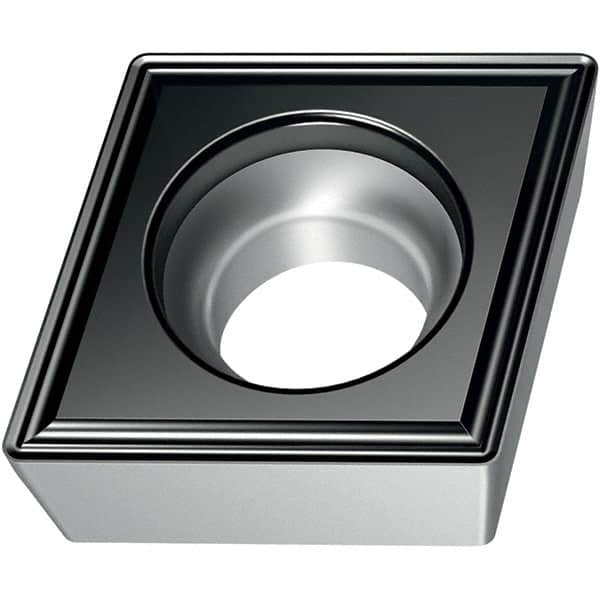

Walter - Indexable Turning Toolholder - CCMT FK6 Insert Compatibility
Item #: 47314406
Brand: Walter
Model #: 6733972
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| ISO Number | CCMT060204-FK6 WKK20S |
| Shape | Rhombic 80 |
| Thickness (Decimal Inch) | 0.0940 |
| Series | CCMT-FK6 |
| Maximum Depth of Cut (mm) | 6.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2540 |
| Manufacturer's Grade | WKK20S |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2540 |
| Insert Style | CCMT |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Corner Radius (mm) | 0.4 |
| Coating | TiCN+Al2O3+(TiCN) |
| Corner Radius (Decimal Inch) | 0.0160 |
| Chip Breaker | FK6 |
| Proprietary Coating Designation | WKK20S |
| Included Angle | 80 |
| Relief Angle | 7 |
| Thickness (mm) | 2.38 |
| Insert Hand | Neutral |
| Insert Length (Decimal Inch) | 0.2540 |
| Cutting Width (mm) | 6.45 |
| OverallLength (mm) | 6.45 |
| Overall Length (Decimal Inch) | 0.2540 |
| Insert Length (mm) | 6.4480 |
