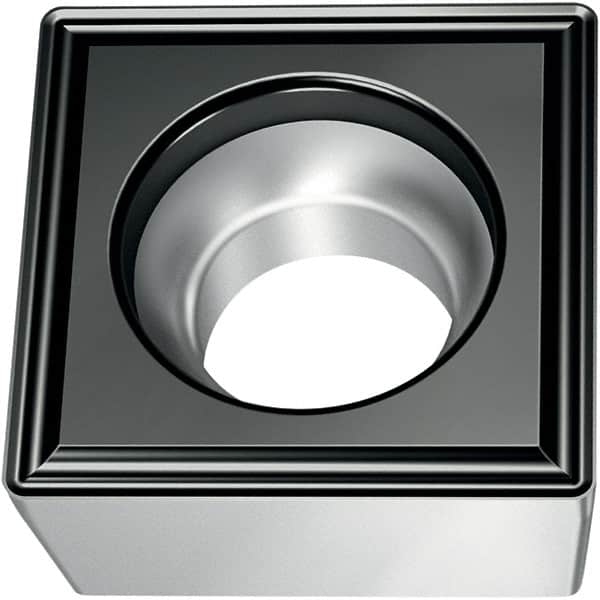

Walter - Indexable Profiling Toolholders ISO Number: SCMT09T308-FK6 WKK20S Manufacturers Catalog Number: 6733991
Item #: 47314299
Brand: Walter
Model #: 6733991
Exact Tooling IR#: 04
Product Specifications
Indexable Profiling Toolholders; ISO Number: SCMT09T308-FK6 WKK20S ; Manufacturers Catalog Number: 6733991 ; Shape: Square ; Thickness (Decimal Inch): 0.1560 ; Series: SCMT-FK6 ; Maximum Depth of Cut (mm): 9.53
| ISO Number | SCMT09T308-FK6 WKK20S |
| Manufacturers Catalog Number | 6733991 |
| Shape | Square |
| Thickness (Decimal Inch) | 0.1560 |
| Series | SCMT-FK6 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | WKK20S |
| Length (mm) | 9.53 |
| Length (Decimal Inch) | 0.3750 |
| Insert Style | SCMT |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Corner Radius (mm) | 0.8 |
| Coating | TiCN+Al2O3+(TiCN) |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chip Breaker | FK6 |
| Proprietary Coating Designation | WKK20S |
| Included Angle | 90 |
| Relief Angle | 7 |
| Thickness (mm) | 3.97 |
| Insert Hand | Neutral |
| Insert Length (Decimal Inch) | 0.3750 |
| Cutting Width (mm) | 9.53 |
| OverallLength (mm) | 9.53 |
| Overall Length (Decimal Inch) | 0.3750 |
| Insert Length (mm) | 9.5250 |
