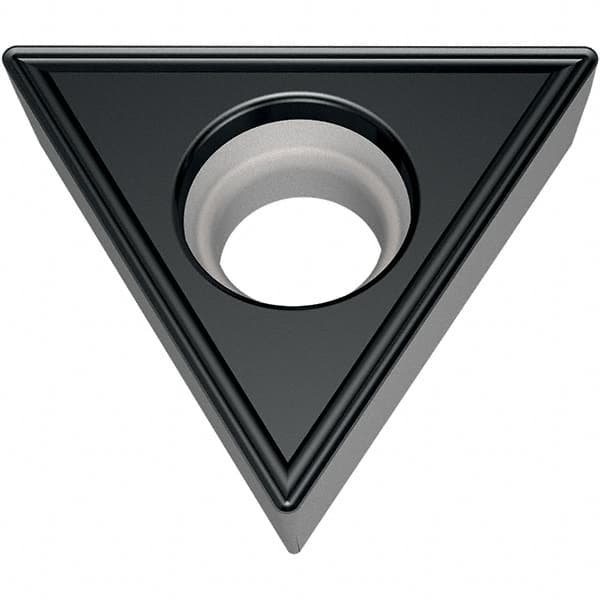

Walter - Indexable Turning Toolholder - TCMT FK6 Insert Compatibility
Item #: 47314257
Brand: Walter
Model #: 6733999
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| ISO Number | TCMT16T304-FK6 WKK10S |
| Shape | Triangular |
| Thickness (Decimal Inch) | 0.1560 |
| Series | TCMT-FK6 |
| Maximum Depth of Cut (mm) | 16.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Manufacturer's Grade | WKK10S |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6500 |
| Insert Style | TCMT |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Corner Radius (mm) | 0.4 |
| Coating | TiCN+Al2O3+(TiCN) |
| Corner Radius (Decimal Inch) | 0.0160 |
| Chip Breaker | FK6 |
| Proprietary Coating Designation | WKK10S |
| Included Angle | 60 |
| Relief Angle | 7 |
| Thickness (mm) | 3.97 |
| Insert Hand | Neutral |
| Insert Length (Decimal Inch) | 0.6500 |
| Cutting Width (mm) | 16.50 |
| OverallLength (mm) | 16.50 |
| Overall Length (Decimal Inch) | 0.6500 |
| Insert Length (mm) | 16.4978 |
