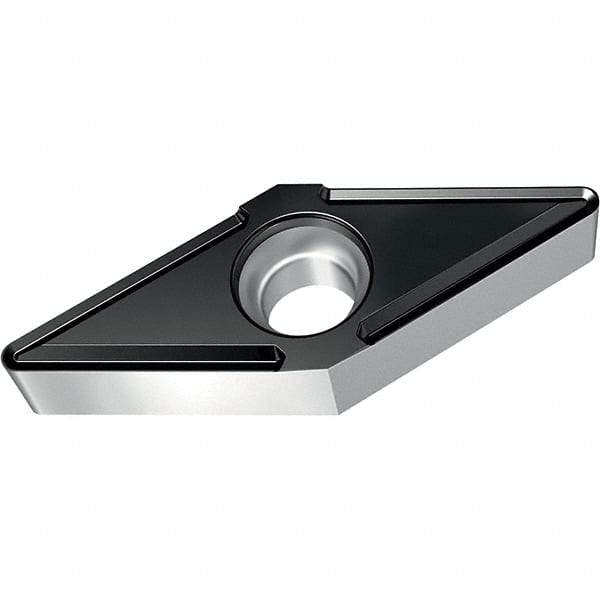

Walter - VBMT FM6 Grade WSM10S Turning Insert - TiAlN+Al2O3+(Al) Finish, 35° Rhombic, 9.53mm Inscr Circle, 4.76mm Thick, 0.8mm Corner Radius
Item #: 47310628
Brand: Walter
Model #: 7054166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WSM10S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | FM6 |
| Insert Length (Decimal Inch) | 0.6540 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.6063 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VBMT160408-FM6 WSM10S |
| Relief Angle | 5 |
| Proprietary Coating Designation | WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7054166 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VBMT-FM6 |
| Maximum Depth of Cut (mm) | 16.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| Cutting Width (mm) | 16.61 |
| Shape | Rhombic 35 |
