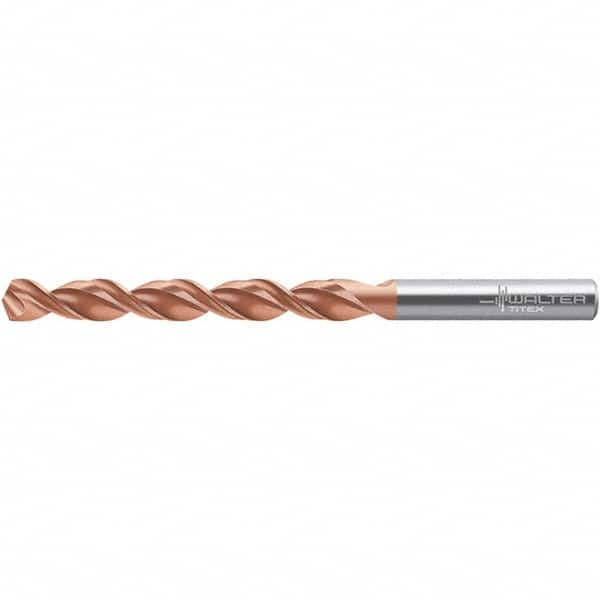

Walter-Titex - 19.5mm 130° High Speed Steel Jobber Drill - AlCrN Finish, Right Hand Cut, 205mm OAL
Item #: 47308325
Brand: Walter-Titex
Model #: 5236522
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 19.50 |
| Drill Bit Size (Decimal Inch) | 0.7677 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | AlCrN |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Length (mm) | 140.00 |
| Flute Length (Decimal Inch) | 5.5120 |
| Overall Length (mm) | 205.00 |
| Overall Length (Decimal Inch) | 8.0710 |
| Flute Length x Diameter Ratio | 8xD |
| Shank Diameter (mm) | 19.50 |
| Shank Diameter (Decimal Inch) | 0.7680 |
| Maximum Drilling Depth (Decimal Inch) | 4.7240 |
| Maximum Drilling Depth (mm) | 120.00 |
| Drill Point Length (mm) | 4.55 |
| Drill Point Length (Decimal Inch) | 0.1790 |
| Number of Flutes | 2 |
| Drill Bit Grade | XPL |
| Material Grade | HSS |
| Series/List | A1249XPL |
