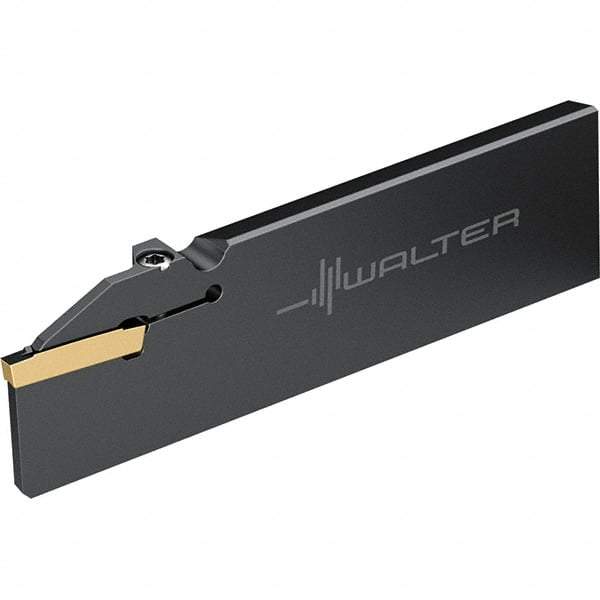

Walter - 1.26" Blade Height, 0.285" Blade Width, 4.331" OAL, Right Hand Cut, Indexable Cut-Off Blade - 32mm Max Depth of Cut, G1041 Blade, G1041 Series
Item #: 47302344
Brand: Walter
Model #: 6641614
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 7.25 |
| Blade Width (Decimal Inch) | 0.2850 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3310 |
| Blade Style | G1041 |
| Series | G1041 |
| Insert Seat Size | 24 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Maximum Workpiece Diameter (mm) | 0 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | G1041.32R-2T32GX24 |
