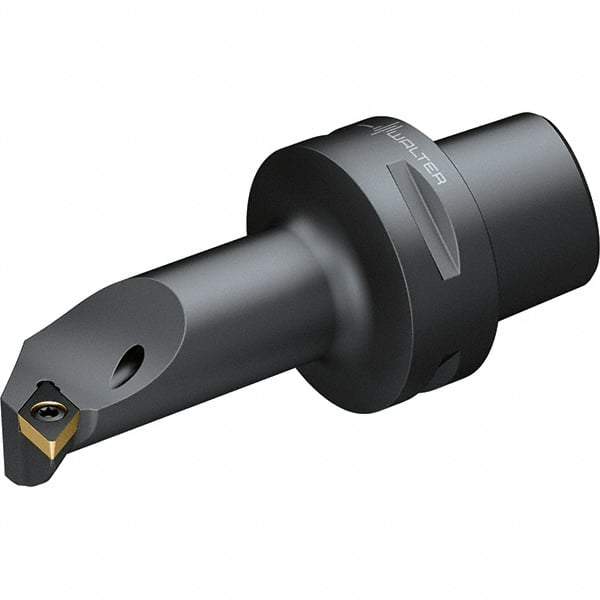

Walter - 25mm Min Bore Diam, 104mm OAL, 40mm Shank Diam, Indexable Boring Bar
Item #: 47301700
Brand: Walter
Model #: 5204799
Exact Tooling IR#: 04
Product Specifications
25mm Min Bore Diam, 104mm OAL, 40mm Shank Diam, Indexable Boring Bar -
| Series | SDUC-CAPTO-INNEN |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Overall Length (mm) | 104.00 |
| Overall Length (Decimal Inch) | 4.0940 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0 |
| Toolholder Material | Steel |
