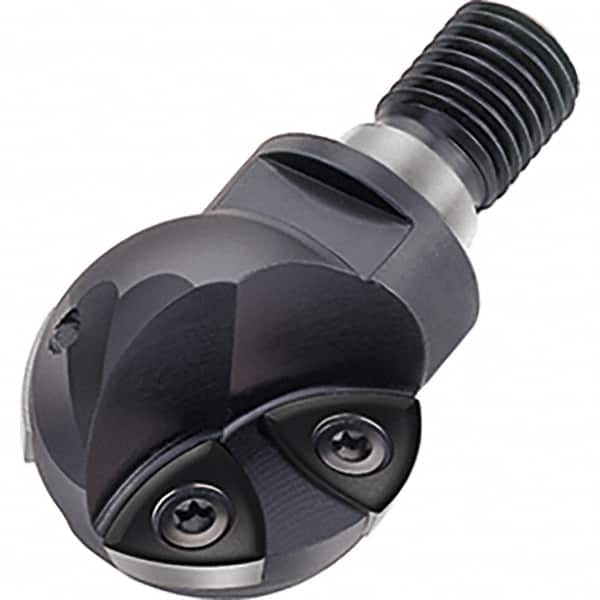

Walter - 20mm Cut Diam, 15mm Max Depth of Cut, 14.5mm Shank Diam, 43mm OAL, Indexable Ball Nose End Mill - 22,200 Max RPM
Item #: 47298344
Brand: Walter
Model #: 5020744
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20 |
| Cutting Diameter (Decimal Inch) | 0.787 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Shank Diameter (mm) | 14.50 |
| Shank Diameter (Decimal Inch) | 0.571 |
| Series | F2239B-T |
| Overall Length (mm) | 43.00 |
| Overall Length (Decimal Inch) | 1.6930 |
| Toolholder Material | Steel |
| Maximum RPM | 22200 |
