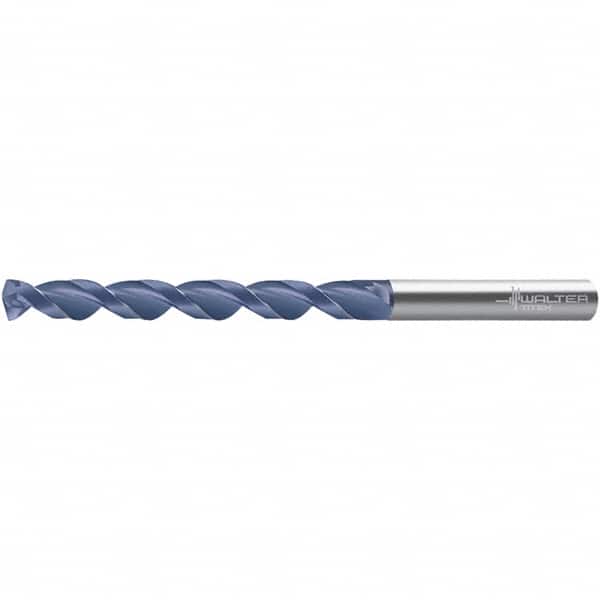

Walter-Titex - 3.3mm 140° Solid Carbide Jobber Drill - TiAlN Finish, Right Hand Cut, 65mm OAL
Item #: 47287305
Brand: Walter-Titex
Model #: 5061427
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.30 |
| Drill Bit Size (Decimal Inch) | 0.1299 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4170 |
| Overall Length (mm) | 65.00 |
| Overall Length (Decimal Inch) | 2.5590 |
| Flute Length x Diameter Ratio | 8xD |
| Shank Diameter (mm) | 3.30 |
| Shank Diameter (Decimal Inch) | 0.1300 |
| Maximum Drilling Depth (Decimal Inch) | 1.1810 |
| Maximum Drilling Depth (mm) | 30.00 |
| Drill Point Length (mm) | 0.60 |
| Drill Point Length (Decimal Inch) | 0.0240 |
| Number of Flutes | 2 |
| Drill Bit Grade | TFL |
| Material Grade | Carbide |
| Series/List | A1276TFL |
