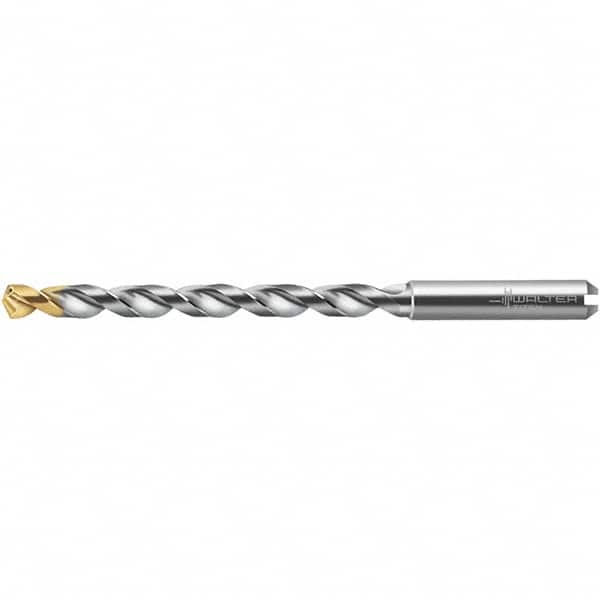

Walter-Titex - 6mm 130° Solid Carbide Jobber Drill - TiN Finish, Right Hand Cut, 101mm OAL
Item #: 47287149
Brand: Walter-Titex
Model #: 5064179
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Flute Length (mm) | 63.00 |
| Flute Length (Decimal Inch) | 2.4800 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9760 |
| Flute Length x Diameter Ratio | 8xD |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Maximum Drilling Depth (Decimal Inch) | 2.1260 |
| Maximum Drilling Depth (mm) | 54.00 |
| Drill Point Length (mm) | 1.40 |
| Drill Point Length (Decimal Inch) | 0.0550 |
| Number of Flutes | 2 |
| Drill Bit Grade | TIP |
| Material Grade | Carbide |
| Series/List | A3486TIP |
