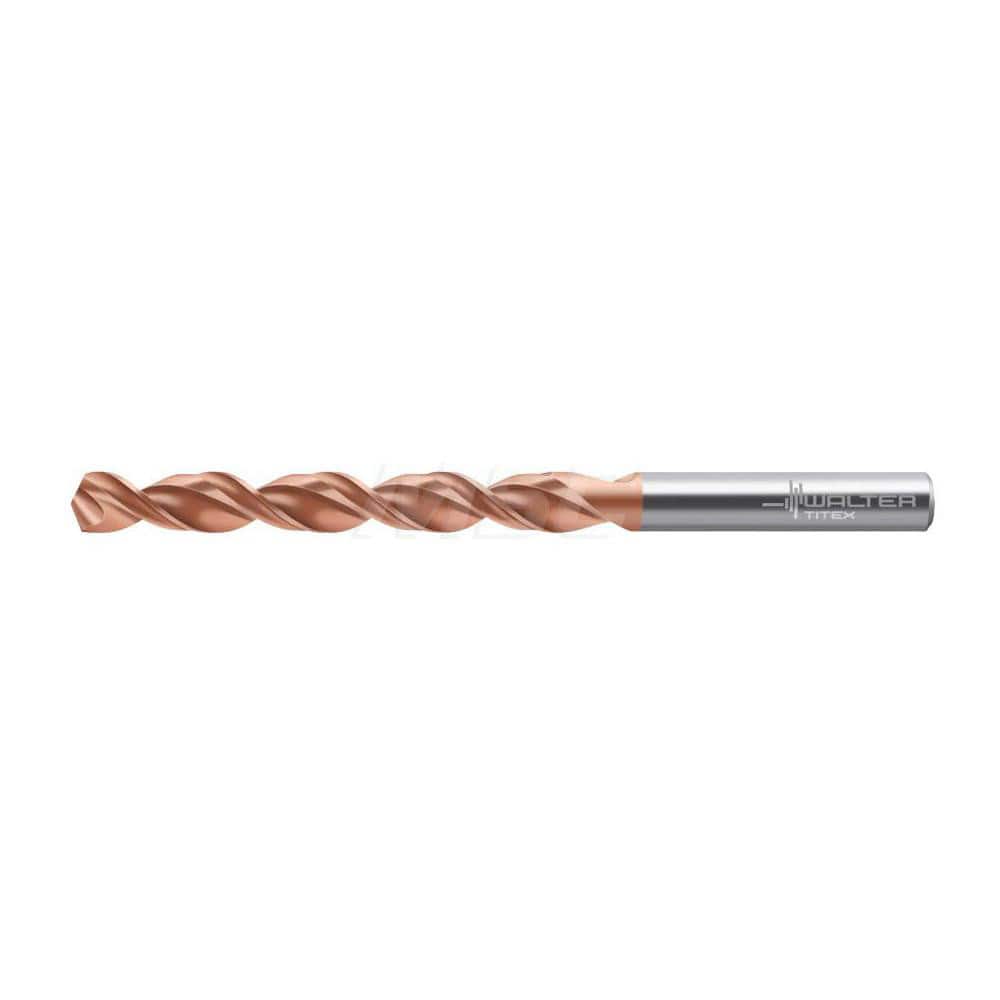

Jobber Length Drill Bit: 0.7874″ Dia, 130 °, High Speed Steel AlCrN Finish, 8.071″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series A1249XPL
Item #: 47286927
Brand: Walter-Titex
Model #: 5236533
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7874 |
| Drill Bit Size (mm) | 20.00 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlCrN |
| Drill Point Angle (Degrees) | 130 |
| Point Type | UFL |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Overall Length (mm) | 205.00 |
| Overall Length (Decimal Inch) | 8.0710 |
| Flute Length (mm) | 140.00 |
| Flute Length (Decimal Inch) | 5.5120 |
| Series | A1249XPL |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 20.00 |
| Maximum Drilling Depth (Decimal Inch) | 4.7240 |
| Maximum Drilling Depth (mm) | 120.00 |
| Shank Length (mm) | 65.00 |
| Shank Length (Decimal Inch) | 2.5590 |
| Drill Point Length (mm) | 4.66 |
| Drill Point Length (Decimal Inch) | 0.1840 |
| Drill Bit Diameter Tolerance | h8 |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | XPL |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | HSS |
