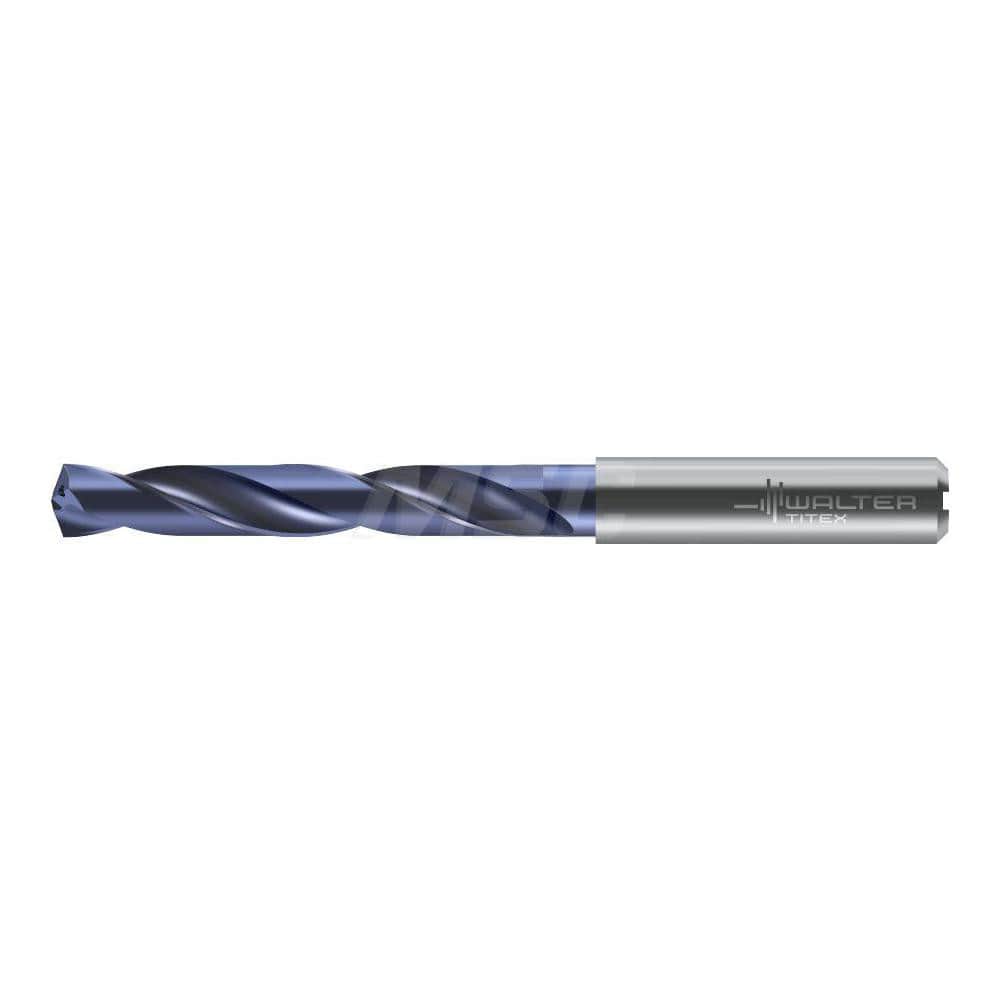

Jobber Length Drill Bit: 0.6378″ Dia, 140 °, Solid Carbide TiNAl Finish, 5.63″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-05-A1
Item #: 47286729
Brand: Walter-Titex
Model #: 6618457
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6378 |
| Drill Bit Size (mm) | 16.20 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiNAl |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7090 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6300 |
| Flute Length (mm) | 93.00 |
| Flute Length (Decimal Inch) | 3.6610 |
| Series | DC150-05-A1 |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 18.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.7950 |
| Maximum Drilling Depth (mm) | 71.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Drill Point Length (mm) | 2.95 |
| Drill Point Length (Decimal Inch) | 0.1160 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Grade | WJ30RE |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
