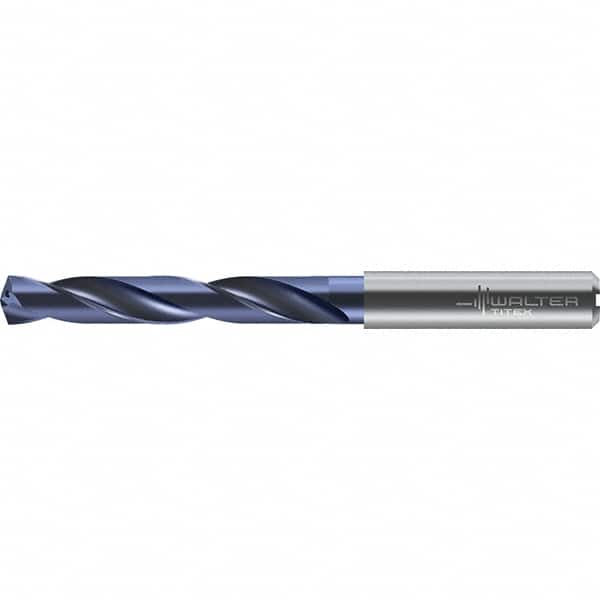

Walter-Titex - 17.3mm 140° Solid Carbide Jobber Drill - TiNAl Finish, Right Hand Cut, 143mm OAL
Item #: 47286687
Brand: Walter-Titex
Model #: 6618465
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tinal is extremely wear resistant coating when used at high temperatures and speeds in a wide range of high strength applications. It is commonly used on steel, cast iron and non-ferrous metal. Tinal is a proprietary coating exclusive to Walter Titex.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 17.30 |
| Drill Bit Size (Decimal Inch) | 0.6811 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiNAl |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Flute Length (mm) | 93.00 |
| Flute Length (Decimal Inch) | 3.6610 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6300 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7090 |
| Maximum Drilling Depth (Decimal Inch) | 2.7950 |
| Maximum Drilling Depth (mm) | 71.00 |
| Drill Point Length (mm) | 3.15 |
| Drill Point Length (Decimal Inch) | 0.1240 |
| Number of Flutes | 2 |
| Drill Bit Grade | WJ30RE |
| Material Grade | Carbide |
| Series/List | DC150-05-A1 |
