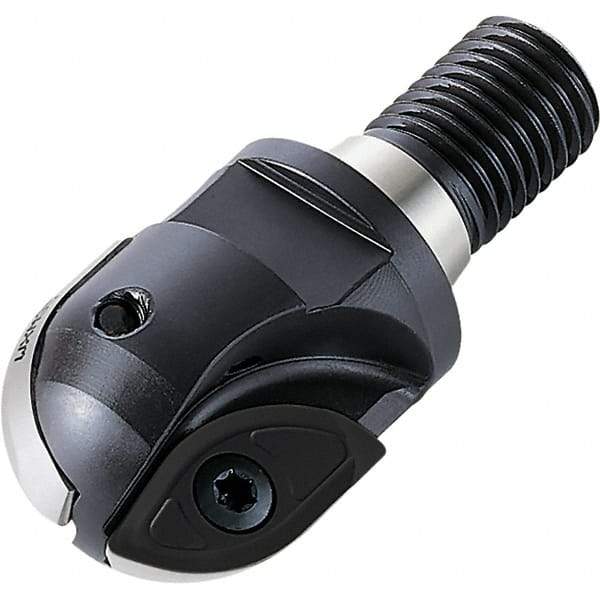

Walter - 16mm Cut Diam, 11mm Max Depth of Cut, 14.5mm Shank Diam, 43mm OAL, Indexable Ball Nose End Mill - 40,000 Max RPM
Item #: 47276779
Brand: Walter
Model #: 5625751
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16 |
| Cutting Diameter (Decimal Inch) | 0.630 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Shank Diameter (mm) | 14.50 |
| Shank Diameter (Decimal Inch) | 0.571 |
| Series | F2339-T-FORMA |
| Overall Length (mm) | 43.00 |
| Overall Length (Decimal Inch) | 1.6930 |
| Toolholder Material | Steel |
| Maximum RPM | 40000 |
