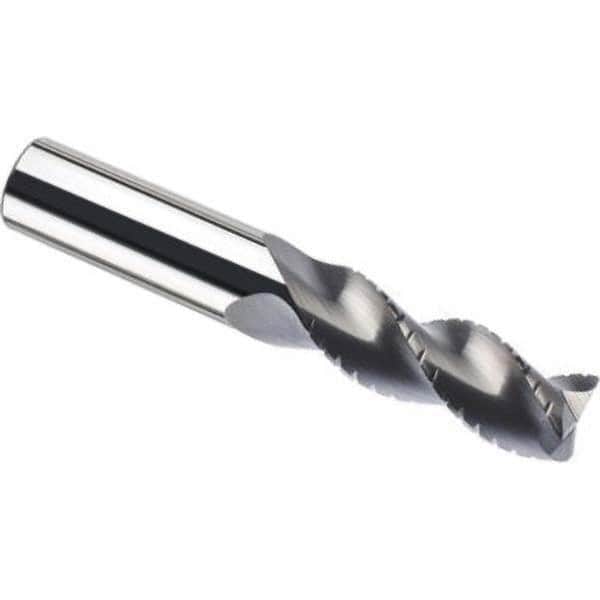

SGS - 20mm, 1.378" LOC, 0.787" Shank Diam, 4.173" OAL, 3 Flute, Solid Carbide Square End Mill
Item #: 10600989
Brand: SGS
Model #: 44993
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium diboride (TiB2) is a corrosion resistant ceramic compound made of titanium and boron. It is commonly used on nonferrous materials including aluminum and magnesium alloys.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 3 |
| Length of Cut (Decimal Inch) | 1.3780 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Single or Double End | Single |
| Overall Length (Decimal Inch) | 4.1730 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Helical |
| Length Type | Regular |
| Helix Style | Medium High |
| Material Grade | Micrograin |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 41 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| PSC Code | 3455 |
| Shank Diameter Tolerance (mm) | h6 |
