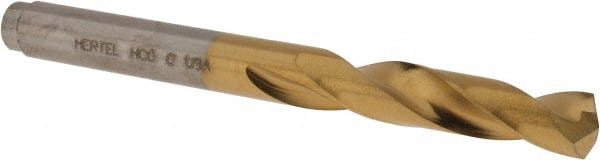

Hertel - 0.242" 135° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 66691536
Brand: Hertel
Model #:
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2420 |
| Drill Bit Size (Letter) | C |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-3/8 |
| Overall Length (Inch) | 2-1/2 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2420 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
