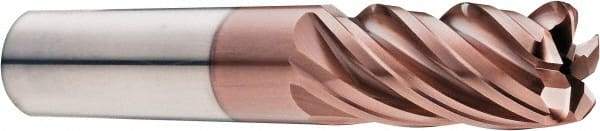

SGS - 20mm Diam, Variable Pitch, 23mm LOC, 5 Flute Solid Carbide 0.0394" Corner Radius Roughing End Mill - Ti-NAMITE-M Finish, 92mm OAL, 20mm Shank Diam, Single End, 37° Helix
Item #: 47084454
Brand: SGS
Model #: 47069
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Ti-Namite-M offers high wear resistance, reduced friction and excellent prevention of cutting edge build up. It provides superior material removal rates and tool life when used in high performance operations with difficult to machine materials like titanium. Ti-Namite-M is a proprietary coating exclusive to SGS Tool Company.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 5 |
| Pitch | Variable |
| Length of Cut (mm) | 23.00 |
| Length of Cut (Decimal Inch) | 0.9055 |
| Shank Diameter (mm) | 20.00 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-M |
| Overall Length (mm) | 92.00 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 37.00 |
| Extended Reach | No |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coolant Induced | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Mill Diameter Tolerance (mm) | +0.000 to -0.050 |
| Overall Length (Decimal Inch) | 3.6220 |
| Series/List | Z5MCR |
