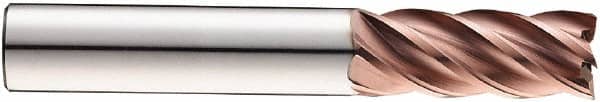

SGS - 1" Diam, Variable Pitch, 2" LOC, 5 Flute Solid Carbide Roughing Square End Mill - Ti-NAMITE-M Finish, 4-1/2" OAL, 1" Shank Diam, Single End, 37° Helix
Item #: 47081336
Brand: SGS
Model #: 37144
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Ti-Namite-M offers high wear resistance, reduced friction and excellent prevention of cutting edge build up. It provides superior material removal rates and tool life when used in high performance operations with difficult to machine materials like titanium. Ti-Namite-M is a proprietary coating exclusive to SGS Tool Company.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 5 |
| Pitch | Variable |
| Length of Cut (Inch) | 2 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 1 |
| End Type | Square End |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-M |
| Overall Length (Inch) | 4-1/2 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 37.00 |
| Extended Reach | No |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | -0.0000/-0.0020 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series/List | Z5 |
