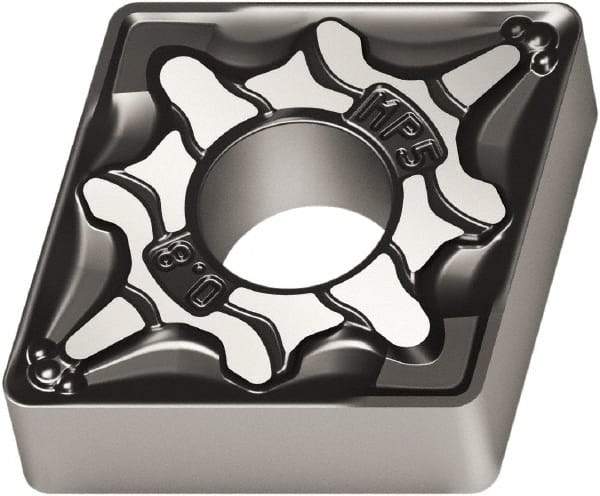

Walter - CNMG543 MP5 Grade WPP05S Carbide Turning Insert - 80° Parallelogram, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 47055348
Brand: Walter
Model #: 6613511
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WPP05S |
| Chip Breaker | MP5 |
| Insert Length (Decimal Inch) | 0.6346 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Parallelogram |
