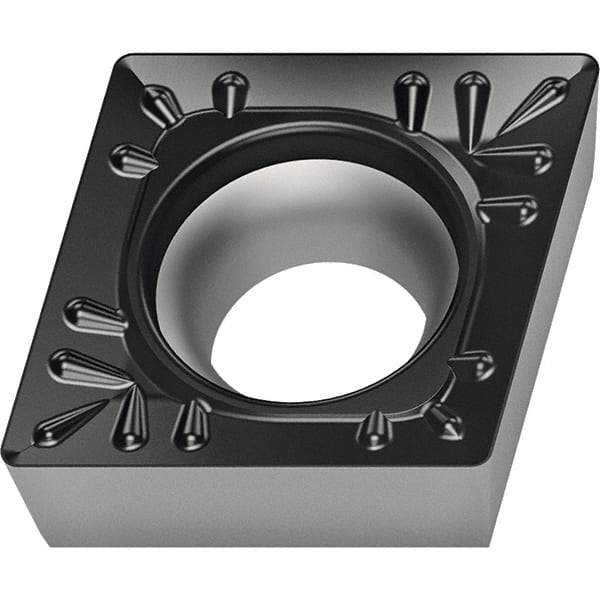

Walter - CCMT433 RK4 Grade WKK10S Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Parallelogram, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 47053251
Brand: Walter
Model #: 6650920
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN/Al2O3 |
| Chip Breaker | RK4 |
| Insert Length (Decimal Inch) | 0.5077 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Parallelogram |
