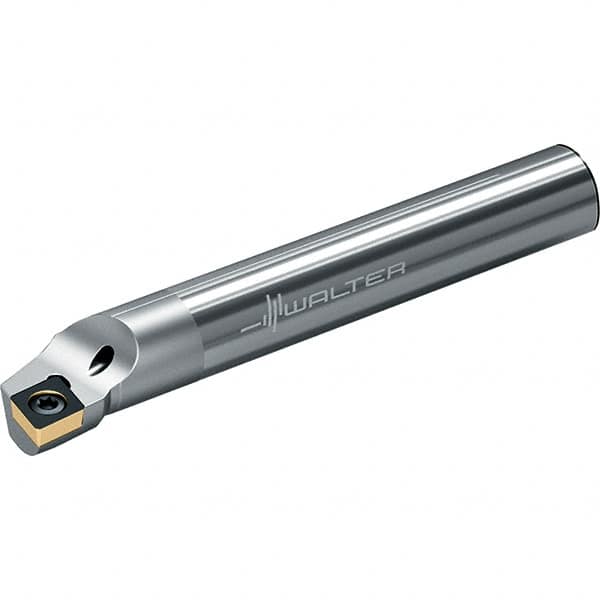

Walter - SCLC, Left Hand Cut, 95° Lead Angle, 32mm Shank Height x 32mm Shank Width, Positive Rake Indexable Turning Toolholder - 300mm OAL, CC..09T3.. Insert Compatibility, Series E25T
Item #: 47052329
Brand: Walter
Model #: 6344674
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCLC |
| Rake | Positive |
| Series | E25T |
| Lead Angle | 95 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | CC..09T3.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Toolholder Material | Carbide |
