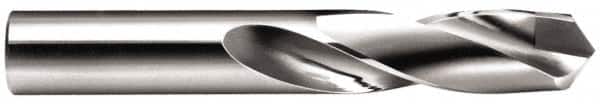

Made in USA - 15mm 118° Spiral Flute Carbide-Tipped Screw Machine Drill Bit
Item #: 76556976
Brand: Made in USA
Model #:
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Drill Bit Size (mm) | 15.00 |
| Drill Point Angle | 118 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 2-41/64 |
| Flute Length (mm) | 67.00 |
| Overall Length (Inch) | 4-9/64 |
| Overall Length (mm) | 105.00 |
| Point Type | Standard |
| Shank Diameter (mm) | 15.00 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0012 to 0.0000 |
| Web Thinning | Web-Thinned |
| Series/List | 2640 |
