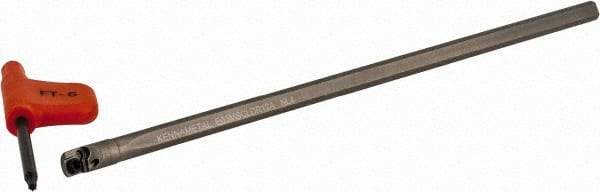

Kennametal - 5.54mm Min Bore Diam, 6" OAL, 3/16" Shank Diam, E-SCLD Indexable Boring Bar - CD.. 120605 Insert, Screw Holding Method
Item #: 46889242
Brand: Kennametal
Model #: 1270947
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 5.54 |
| Minimum Bore Diameter (Decimal Inch) | 0.2180 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 4.76 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Insert Compatibility | CD.. 120605 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 2.82 |
| Center to Cutting Edge (Decimal Inch) | 0.1110 |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | 5 |
| Coolant Hole Diameter (mm) | 1.02 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | CD.. 120605 |
| Toolholder Material | Carbide |
