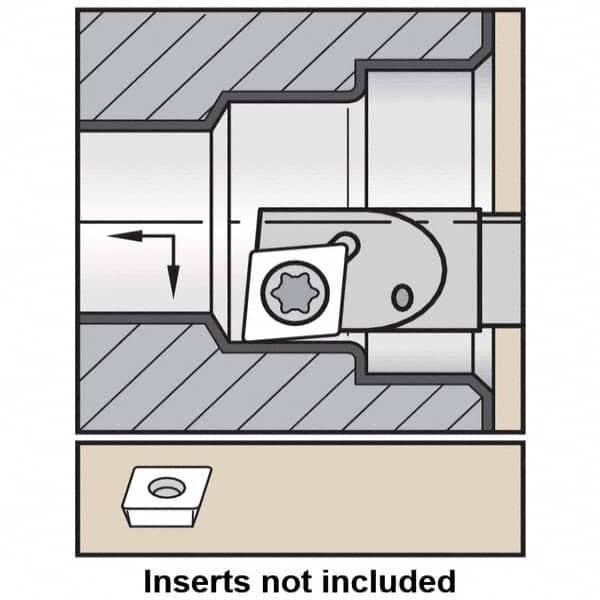

Kennametal - 6.91mm Min Bore Diam, 65mm OAL, 6mm Shank Diam, A-SCLD Indexable Boring Bar - CD.. S4T002 Insert, Screw Holding Method
Item #: 46889168
Brand: Kennametal
Model #: 1288893
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 6.91 |
| Minimum Bore Diameter (Decimal Inch) | 0.2720 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 65.00 |
| Overall Length (Decimal Inch) | 2.5591 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | CD.. S4T002 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 3.73 |
| Center to Cutting Edge (Decimal Inch) | 0.1469 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Complete Insert Compatibility | CD.. S4T002 |
| Toolholder Material | Steel |
