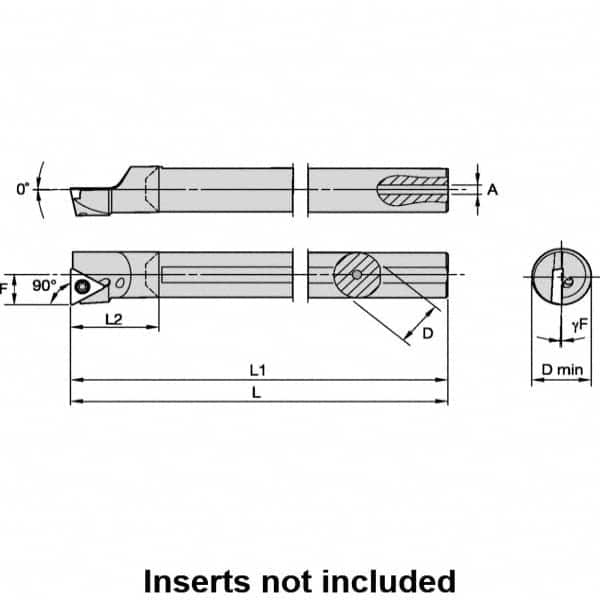

Kennametal - 11mm Min Bore Diam, 124.75mm OAL, 8mm Shank Diam, L-STFP Indexable Boring Bar - 19.12mm Max Bore Depth, TP.. 090204 Insert, Screw Holding Method
Item #: 46888194
Brand: Kennametal
Model #: 3331128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | L-STFP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 11.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4331 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 19.12 |
| Maximum Bore Depth (Decimal Inch) | 0.7528 |
| Overall Length (mm) | 124.75 |
| Overall Length (Decimal Inch) | 4.9114 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TP.. 090204 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 0 |
| Center to Cutting Edge (mm) | 6.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2362 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Insert Inscribed Circle (mm) | 5.56 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 2.39 |
| Coolant Hole Diameter (Decimal Inch) | 0.0941 |
| Complete Insert Compatibility | TPMT 090204.. |
| Toolholder Material | Heavy Metal |
