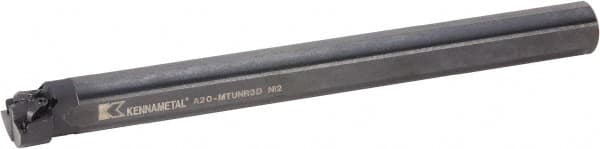

Kennametal - 39.37mm Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, A-MTUN-D Indexable Boring Bar - TN.. 332 Insert, Pin & Clamp Holding Method
Item #: 46887907
Brand: Kennametal
Model #: 1096381
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTUN-D |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 39.37 |
| Minimum Bore Diameter (Decimal Inch) | 1.5500 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 355.60 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | TN.. 332 |
| Through Coolant | Yes |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | -3 |
| Center to Cutting Edge (mm) | 19.43 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TN.. 332 |
| Toolholder Material | Steel |
