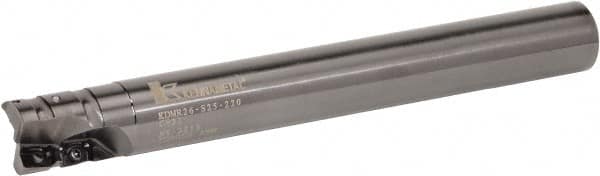

Kennametal - 25mm Cut Diam, 28mm Max Depth of Cut, 25mm Shank Diam, 170mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 13T3.., JOMT 13T3.. Inserts, Cylindrical Shank, 0° Lead Angle, Series KDMR
Item #: 46884664
Brand: Kennametal
Model #: 3587064
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 170.00 |
| Overall Length/Projection (Decimal Inch) | 6.6929 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 13T3..; JOMT 13T3.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
