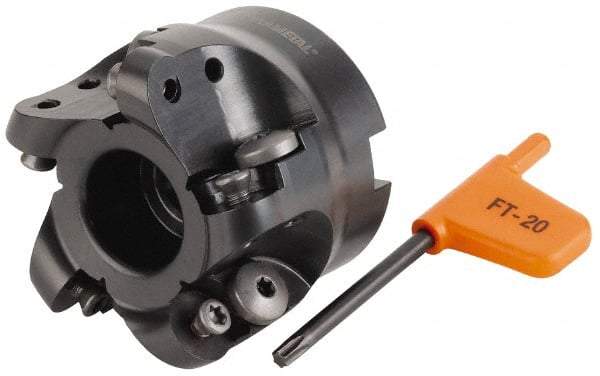

Kennametal - 63mm Cut Diam, 7.5mm Max Depth, 27mm Arbor Hole, 5 Inserts, RD.X 1604... Insert Style, Indexable Copy Face Mill - 50mm High, Through Coolant, Series KDM
Item #: 46868998
Brand: Kennametal
Model #: 3681015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KDM |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RD.X 1604... |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.9690 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RD.X 1604MO.. |
