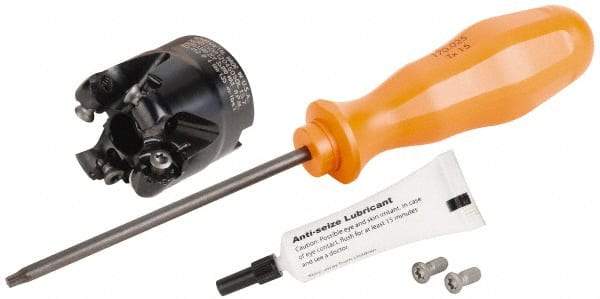

Kennametal - 38.1mm Cut Diam, 2.97mm Max Depth, 1/2" Arbor Hole, 4 Inserts, RN.J 1204... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 35,890 Max RPM, 39.88mm High, Through Coolant, Series Rodeka
Item #: 46868584
Brand: Kennametal
Model #: 4178122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 2.97 |
| Maximum Depth of Cut (Decimal Inch) | 0.1170 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Inch) | 1/2 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (mm) | 39.88 |
| Overall Height (Decimal Inch) | 1.5700 |
| Series | Rodeka |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RN.J 1204... |
| Cutter Style | KDR |
| Through Coolant | Yes |
| Maximum RPM | 35890 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.3000 |
| Complete Insert Compatibility | RN.J 1204M0.. |
