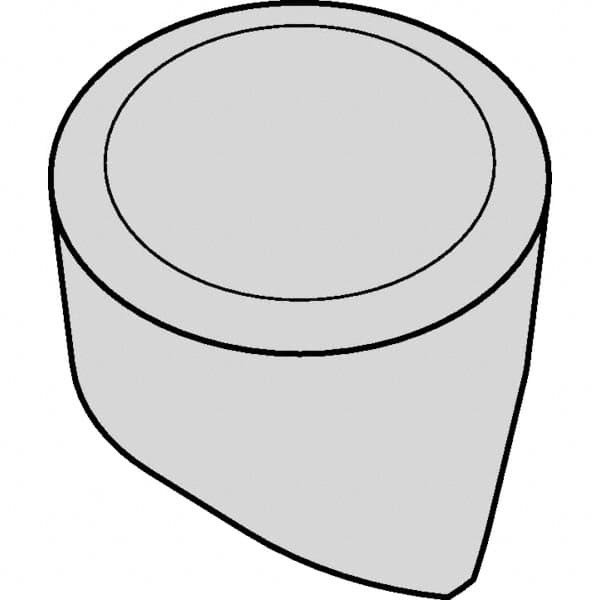

Kennametal - RPGV35 Grade KYS30 Ceramic Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 5/16" Thick
Item #: 46866935
Brand: Kennametal
Model #: 4146476
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RPGV |
| Insert Size | 35 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | KYS30 |
| Coating | Uncoated |
| ISO Number | RPGX090700T01020 |
| Relief Angle | 11 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kendex |
| Insert Holding Method | Clamp |
| Shape | Round |
