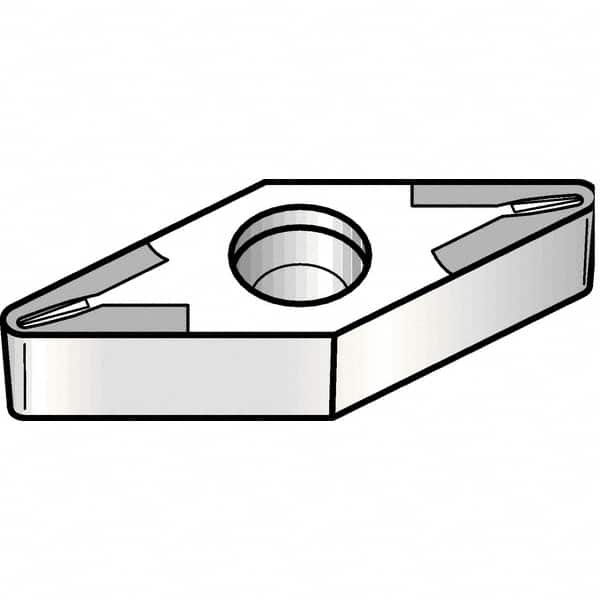

Kennametal - VBMT331 11 Grade KT325 Cermet Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 46866851
Brand: Kennametal
Model #: 1198162
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331 |
| Material | Cermet |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6538 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KT325 |
| Coating | Uncoated |
| Chip Breaker | 11 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBMT16040411 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Diamond |
