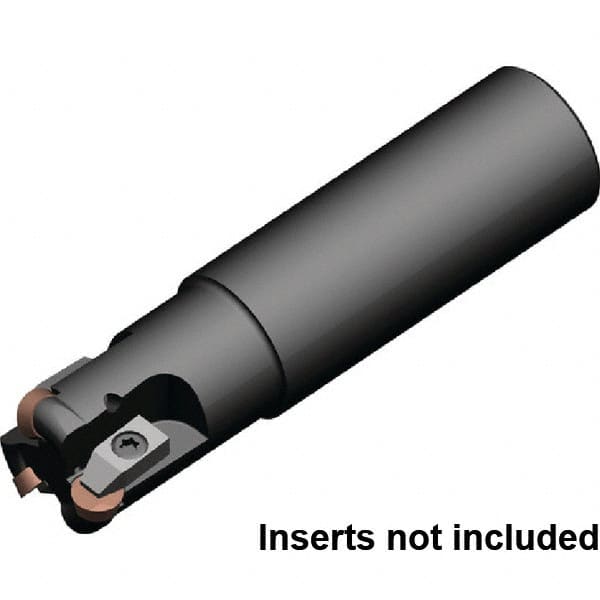

Kennametal - 40mm Cutting Diam, 32mm Shank Diam, 1.5748" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 4 Inserts, RP.N 1204.. Insert, KIPR Toolholder, Through Coolant
Item #: 46866430
Brand: Kennametal
Model #: 3101755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 6.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2492 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.N 1204.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 27.53 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Maximum RPM | 18260 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
