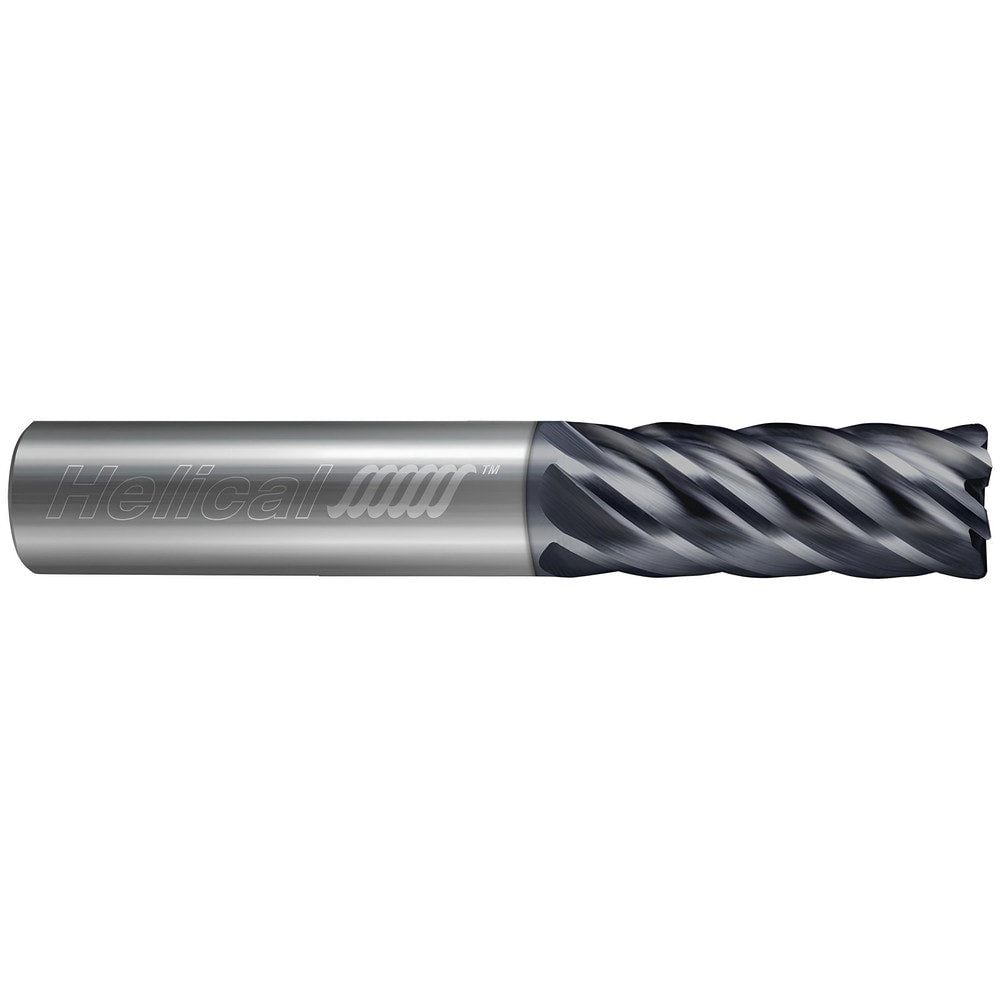

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, APLUS Coated, Proprietary, Corner Radius End, Centercutting Series HXVR
Item #: 49190499
Brand: Helical Solutions
Model #: 55152
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | APLUS |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0400 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Variable |
| Overall Length (Decimal Inch) | 2.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Stub |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | -0.0020 to 0.0020 in |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | -0.0620/0.0620 in |
| Primary Workpiece Material | Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; M; N |
| Series | HXVR |
| TIR Maximum (Decimal Inch) | 0.0003 |
| Material Application | Medium Alloy Steel; Cast Iron; Tool Steel; Low-Alloy Steel |
| Coating Classification | PVD |
| Proprietary Coating Designation | Proprietary |
| For Use With. | High Precision Toolholders |
