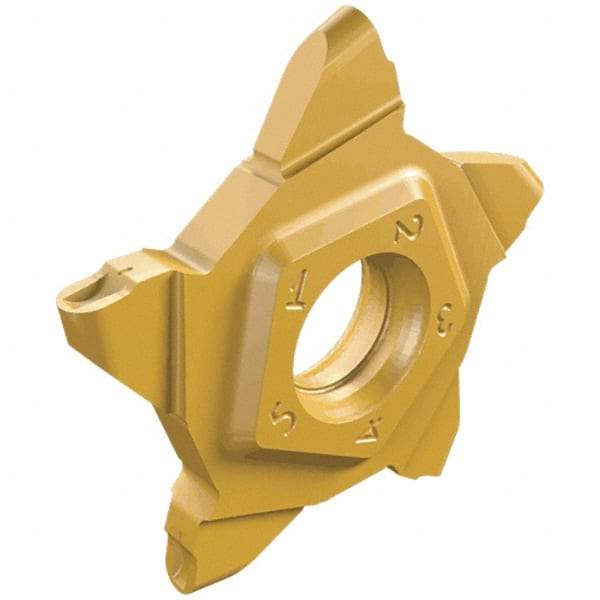

Iscar - 24N200PENTA C Grade IC908, 2mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, 1mm Corner Radius, TiAlN Finish
Item #: 46698346
Brand: Iscar
Model #: 6004924
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Chipbreaker | C |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Series | PentaCut |
| Rake | Positive |
| ISO Number | PENTA 24N200C100 IC908 |
| Manufacturers Catalog Number | 6004924 |
