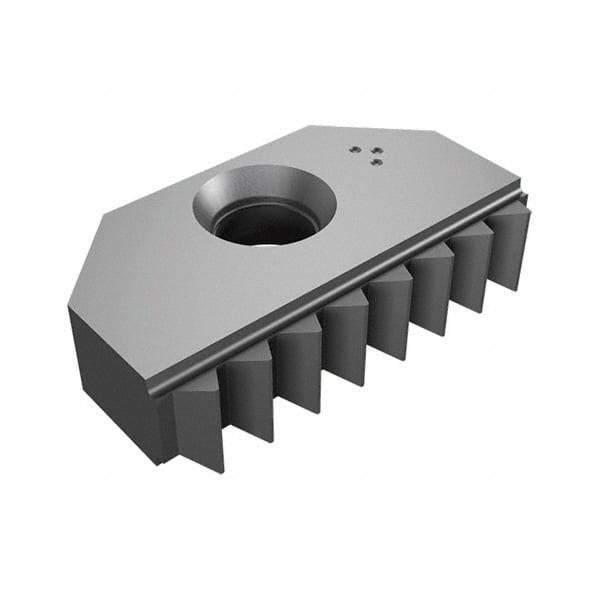

Iscar - 2mm Pitch, Internal Thread, UN Standard, MT LNHU Grade IC908 Thread Mill Insert - Carbide, TiAlN Coating
Item #: 46697439
Brand: Iscar
Model #: 5669332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | MT LNHU |
| Thread Type | Internal |
| Thread Standard | UN |
| Pitch (mm) | 2.00 |
| Length (mm) | 14.00 |
| Length (Decimal Inch) | 0.5510 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Thickness (mm) | 3.20 |
| Thickness (Decimal Inch) | 0.1260 |
| Width (Decimal Inch) | 0.3110 |
| Width (mm) | 7.90 |
