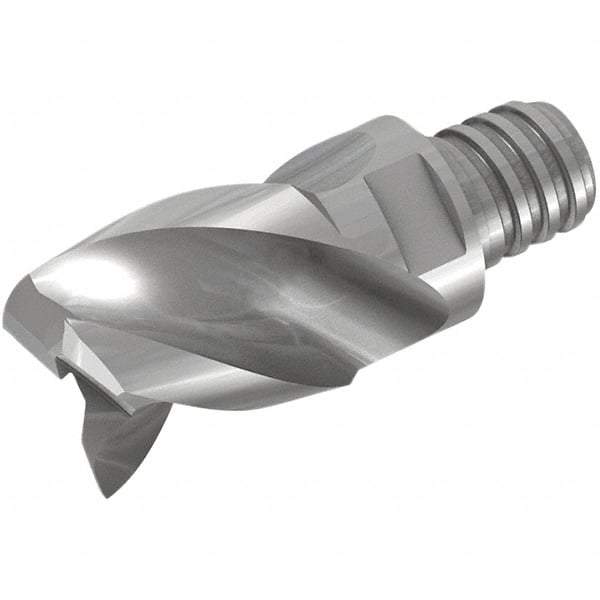

Iscar - MM EA Grade IC08 Carbide End Milling Tip Insert - Uncoated, 3 Flutes, 20mm Cutting Diam, 20mm Depth of Cut, 34mm Extension, 40° Helix
Item #: 46696688
Brand: Iscar
Model #: 5668965
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Series | ChatterFree; Multimaster |
| Milling Tip Style | MM EA |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Depth of Cut (mm) | 20.00 |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Milling Tip Full Description | Roughing & Finishing End Mill |
| Corner Radius (mm) | 2.50 |
| Extension From Holder (mm) | 34.00 |
| Thread Size | T12 |
| Helix Angle | 40 |
| Style | MM EA200H20R2.5CF-3T12 |
| Manufacturers Catalog Number | MM EA200H20R2.5CF-3T12 |
