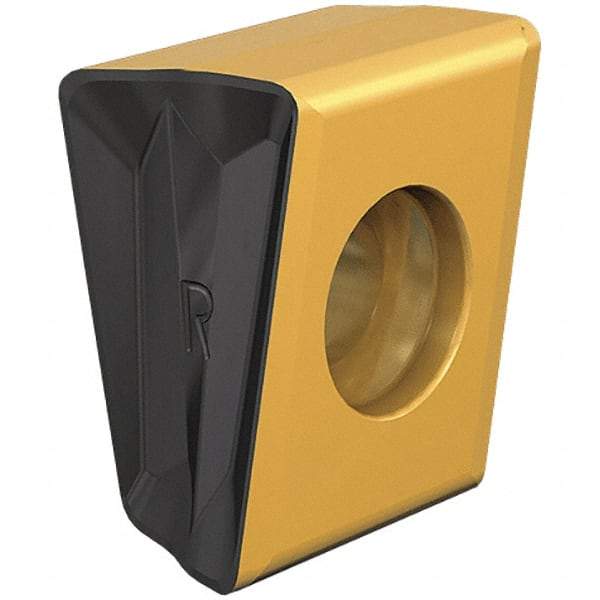

Iscar - T490 LNHT130640 PNTR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 12.6mm Thick, 4mm Corner Radius
Item #: 46696159
Brand: Iscar
Model #: 5668136
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 130640 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.65 |
| Width (Decimal Inch) | 0.2620 |
| Length (mm) | 13.63 |
| Length (Decimal Inch) | 0.5370 |
| Thickness (mm) | 12.60 |
| Thickness (Decimal Inch) | 0.4960 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 4.00 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNHT 130640PNTR |
| ISO Number | T490 LNHT 130640PNTR |
| ANSI Number | T490 LNHT 130640PNTR |
